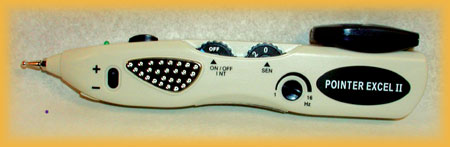

Pointer Excel II - Acu-Point Locator Stimulator for Natural Healing The most advanced Hand Held Point Detector with Digital Display. Get results with the Pointer-Excell II locator-stimulator. This electric stimulation device works great for pain relief, pain management and stimulation of acupressure / acupuncture points, trigger points and auricular points.

Pain Relief without Needles or Pills!

The POINTER Excel II is the newest and most advanced digital addition to electronic acupressure devices. It allows you to instantly tap into the BENEFITS that are derived from a 5000 year old Chinese Health Science. The new generation of acupuncture is self administered and is now called ELECTRO-ACUPRESSURE! The Pointer-Excell offers FAST and EFFECTIVE RELIEF from Aches, Pains, Swelling, Inflammation, Tension and Stress-Related Symptoms! The Portable Battery-Operated POINTER-EXCELL is so HANDY, that you can use it anytime and anywhere with its high-tec digital meter for precise stimulation. It's TOTALLY NON-INVASIVE, PAINLESS and FUN TO USE ON YOURSELF OR OTHERS.

Order Now with the Secure Shopping Cart Below.
The Pointer Excel is available for just: $189.95

Qty:

To order use shopping cart above or call toll free 1-888-824-7558

POINTER EXCEL II: This amazing NEEDLELESS Stimulation device -- Locates and stimulates acupressure points on yourself or someone else. It is a user-friendly hand-held device with digital display for location of acupuncture or trigger points. It incorporates an effective push button stimulation feature for immediate electroacupuncture treatment of the point or area immediately following its detection.

The Pointer Excel 2 is able to pick up on the skin/heat resistance of an acupoint to acurately show you that you have found the point via: 1) digital meter, 2) audible sound, and 3) visible colored light. The digital display helps the user to locate the most accurate acupuncture or trigger point easily, as the number increases with the lowering of the electric resistance of the skin (when a maximum number is reached, an acupuncture point is detected and electroacupuressure may begin). Self-treatment for electroacupuncture has never been so easy!

This new model has additional features, such as adjustable frequency from 1 - 16 Hz, and polarity reversal switch (for tonification or sedation). It is one of the most innovative hand-held stimulators available in the market.

It's adjustable stimulation intensity is powered by a nine-volt battery, has a carrying case, grounding pole, grounding plate and 2 interchangeable tips for body or ear points. It works fabulously well as a substitute for needles and is easy to learn how to use. Battery and instructions included.

The Pointer EXCEL II, locator/stimulator is changing the way people approach pain relief and natural healing. Now you can discover how to tap into your body's healing powers and activate your body's natural healing processes. By utilizing powerful and effective knowledge about the human body that has been practiced and perfected for over 5000 years, you can now heal yourself. Thousands of health conditions are being treated utilizing this amazing NEEDLELESS Japanese home use electronic medical device.

HOW DOES THE POINTER EXCEL II WORK? The hand-held POINTER EXCEL II offers SENSITIVE Acupuncture point and Trigger Point Location and stimulation. It is equipped with a Low-Pitched Continuous Tone and a Flashing Green LED, that allows you to know EXACTLY when you have PIN-POINTED the LOW Resistance Acupuncture or Trigger Point that is NEEDED to give you FAST (2-5 minutes) and EFFECTIVE PAIN RELIEF! The POINTER-EXCELL II has a Metal Plate on both sides, that you touch to complete the Grounding Circuit. The Hand-Held Grounding Pole with attached Wire can also be used for treatment of oneself or others. The POINTER EXCELL 2 also has an ON/OFF Intensity Control Switch and a Sensitivity Control Switch.

This unique hand held device, electro acupuncture stimulator, is designed to accurately and easily locate trigger points and treat them with electro stimulation. The electric frequency has been determined by the Japanese, Germans and Chinese to most closely resemble the effect of a needle in the body. This can be done on the body, foot, hand and auricular (ear) points.

Key Features of the Pointer excel:
*	Large LCD Digital Display: Frequency / Sensitivity Indicator
* *	Intensity adjustment Control:  OFF, 0 to 10 Sensitivity adjustment Control: 0 to 10
*	Two interchangeable probes (large and small)
*	One 9v. battery
*	Patient's or self treatment grounding pole
*	Carrying case
Specifications:
*	Size - 225 x 50 x 38 mm (8.6"x l.5"x 1")
* *	Output intensity - 0-22ma Micro-current Output: 0 to 2 Microamps
*	Frequency Control 1 to 16 Hz
*	Weight - 90gr
*	Pulse width 220 microseconds
*	Wave form - continuous
* * * *	Wave shape - Asymmetric biphasic square wave Point Detection - Meter, Sound and Light Indicators Polarity Reversal Switch: + / - by switch Operation Temp: +16.°C TO +30.°C
Cautions: Who and where it should not be used:
*	By pregnant women
*	If fitted with pacemakers or internal defibrillators
*	If there is any heart disease or conditions
*	Around open wounds
*	On eyes
Order Now with the Secure Shopping Cart Below. The Pointer Excel is available for just: $189.95 Qty: To order use the shopping cart above or call toll free 1-888-824-7558

We accept Mastercard, Visa, Discover and even American Express!!!

Included Accessories:

• The Pointer Excel II Unit
• Hand electrode for close circuit purposes
• Two probes, diameter 2 mm & 4mm
• Heavy Duty battery
• Instruction Manual
• ABS plastic carrying case

Maintenance:
Maintenance of the Pointer Excel II Stimulator/Detector is limited to cleaning the stimulator battery contacts and metal electrodes. The stimulator operates on a 9 volt battery (A 9 volt Duracell or other alkaline battery is recommended). When adequate stimulation can no longer be maintained, change the battery. Remove the old battery and replace it with a new battery. The system will provide stimulation only if the battery is properly installed.

Basic Principle:
On the body surface, the electric resistance of a trigger point or a reactive point is lower than in its surrounding areas. It can be readily located by means of an instrument which is sensitive to resistance changes. When the metal probe touches a low resistance point the loudspeaker gives a sound signal. Its pitch rises with the lowering of the electric resistance of the skin. With this device and method of detection, trigger points thus located usually produce a strong sensation and reaction to electric stimulation, and will achieve the best therapeutic results.

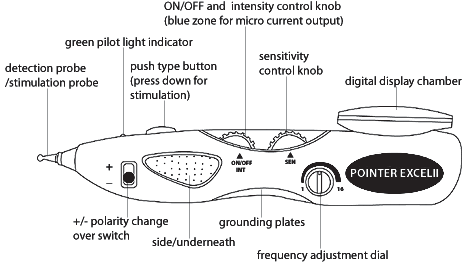

Unique Features:
1. The Digital Display chamber is located on the rear to side of the unit. The device features a digital display to show the working frequency (from 1 to 16 Hz) of stimulation during acupuncture treatment when pushing down the stimulation button, and a numerical display (maximum around 500 when sensitivity is adjust to the highest range) to show the sensitivity of detection during the location of acupuncture points. When used in Acupuncture or trigger point detection, the digital display will show the location of the acupuncture point in numerical form. During acupuncture location, the highest numerical value refers to the nearest site of acupuncture point. The green indication LED will remain lit when the acupuncture point is located.

2. The Polarity switch easily allows the output stimulation's polarity to be reversed from + (for tonification) to – (sedation) or vice-versa during acupuncture treatment. In doing this, the output intensity should be turned down first in order to avoid a sudden increase in intensity.

3. Acupuncture treatment through the probe may be used for the immediate treatment of the point or area right after its detection to the patient, by simply pushing down the stimulation/detection button on top of the unit. Immediate Point Location and Treatment: the button on the top of the unit may be pressed to activate the stimulation mode. A continuous electric pulse of 1 to 16 Hz (adjustable by turning the frequency dial) is emitted through the probe, the intensity may also be adjusted from 0 to 22mA. The intensity is controlled with the intensity knob labeled “INT”. Micro current intensity is emitted when the switch is in the “blue” zone. When treating with micro current intensity, there will be very little or no feeling of stimulation achieved even the probe is located at the trigger or acupuncture points.

4. Modern Spring Type Probe Tip
This new improved interchangeable spring type probe provides a more constant and comfortable acupressure to the area or points, thus providing better accuracy during point location searching. It is important to note that any part of the body may be induced to produce a point location signal depending on the amount of pressure used during location. Thus, it is important when locating the trigger points to use the least amount of pressure possible on the surface of the skin. Also, the movement of the probe when searching for the point should be smooth and graceful, always maintaining the same light uniform constant pressure until the correct point is found. The unique spring mechanism of the Pointer probe will add in correction for any slight variations in the applied pressure.

5. Interchangeable Probes
Two different probes tips (2mm & 4 mm diameter) are provided for different applications. The smaller probe tip is more suitable for ear points, and the wider probe is better for the body.

6. Sensitivity Adjustment
The point detection sensitivity is adjustable. The “SEN” knob is used to either increase (clockwise adjustment) or decrease (counter clockwise) sensitivity when used on different skin conditions (i.e. dry or moist skin). The level of sensitivity can be read from the Digital Display Monitor.

7. Hand Grounding Pole Accessory
The patient must hold the hand grounding pole in order to create a complete electrical circuit. This accessory is easily attached or removed from the unit. (Note: this unit may also be used without the grounding pole, however, in this case the practitioner must contact both the grounding plate(e) on the unit as well as hold the bare skin of the patient with his hand to complete the circuit.) The grounding pole is not necessary when using on oneself providing the grounding plate(s) on the unit is contacted.

8. Frequency adjustment dial, to adjust the frequency of stimulation from 1 to 16 Hz. The frequency selected can be read from the display chamber when pressing down the push type button on the front top of the unit.

9. Two ground plates, one located at the front left hand side, and the other one underneath the unit, to allow the user (or left handed user) to hold the unit and touch the ground plate(s) easily in closing the circuit for point detection or stimulation.

Instructions For Use:

1. Insert the 9 volt battery onto the battery clips, the positive and negative poles of the battery should always be matched correctly with the respective battery clips. A 9 volt Duracell or other alkaline battery is recommended for the best performance.

2. Two different probes are provided for different applications. The larger probe may be used for larger areas or body points while the small probe may be used for ear points or other smaller body points.

3. For self-use, touch the grounding metal plate(s) on the front side or underneath the unit and then search for the point.

4. Press each point slightly; the probe uses a spring mechanism so that a constant pressure may be maintained during location. The trigger point is located when a continuous sound is heard from the buzzer and at the same time the LED light located in front of the Loc/Stim button is flashing continuously.

5. If stimulation is required on this point, simply adjust the intensity knob “INT” to an acceptable level and press the loc/Stim button. When this button is released, the unit is immediately returned to the point detection mode. Pressing the Loc/Stim button again will produce output stimulation. The intensity is controlled with the intensity knob labeled “INT”. Turn the switch clockwise to increase the output intensity. Micro current intensity is emitted when the switch is in the “blue” zone. When treating with micro current intensity, there will be very little or no feeling of stimulation achieved, even if the probe is located at the trigger or acupuncture points.

6. It is recommended to begin treatment with a low intensity setting, thereafter turning the “INT” control until a comfortable intensity is reached.

7. In order to treat patients, the grounding pole must be attached with the plug jack to the bottom of the unit. The patient must hold the grounding pole to complete the electrical circuit which then activates the detection and stimulation functions.

8. This device is equipped with a Polarity switch. If a positive (+ for tonification) or negative (- for sedation) pulse stimulation is required, simply set the switch to + or – position.

9. The Digital Display chamber is located on the rear top side of the unit, it features a digital display to show the frequency (from 1 to 16Hz) of stimulation during operation, and numerical display (maximum around 500 when sensitivity adjustment to highest range) to show the sensitivity of detection during the location of acupuncture points.

10. Turn off the unit after use. Remove the battery from the unit when the device will not be used for a long period of time.

Battery information:
Your stimulator requires 1 9V battery, use PP3, 6F22 or its equivalent type of battery (Alkaline battery is recommended). The battery is replaced by opening the battery door on the bottom side of the Unit. Slide the battery door off, remove the old battery and insert the new battery. Insert the battery correctly with the polarity according to the diagram shown in the battery compartment label. Make sure the directions of positive and negative poles of battery inserted is correct and be sure you are using a fresh battery. Close the battery door. Battery life is 4 to 20 treatment hours depending on how high the current is set and how long each treatment session is. Many short treatment sessions give longer battery life than fewer longer sessions. To avoid battery leakage, remove the battery if the unit will not be used for an extended period of time.

Length Of Treatment:
The length of treatment or stimulation time depends on the point or area to be treated as well as other factors. Generally, treatment times may vary from 5 to 20 seconds, longer times may also be necessary up to 2 minutes in some cases such as lower back pain. The best treatment times and intensities should be selected based on the practitioners experience and training.

TESTIMONIALS:

"I usually find these gadgets hard to figure out, but the Pointer Excel II is a snap to use. It's fun finding my own acupuncture points and instantly treating them!"
      — Tiffany York, Miami, FL

"This trigger point locator is extremely safe and simple to use for home treatment. I would suggest it as an effective alternative or addition to regular acupuncture therapy."
      — Dr. Thomas Chen, Shanghai, China
